PQ1M255M2SPQ - (PQ1M155M2SPQ) Compact Surface Mount Type Low Power-Loss Voltage Regulators

Product Overview

Sharp Electrionic

Part number	PQ1M255M2SPQ
Manufacturer	Sharp Electrionic
File Size	172.46 KB
Description	(PQ1M155M2SPQ) Compact Surface Mount Type Low Power-Loss Voltage Regulators
Datasheet	PQ1M255M2SPQ Datasheet
Note	This datasheet PDF includes multiple part numbers: PQ1M255M2SPQ, PQ1M155M2SPQ. Please refer to the document for exact specifications by model.

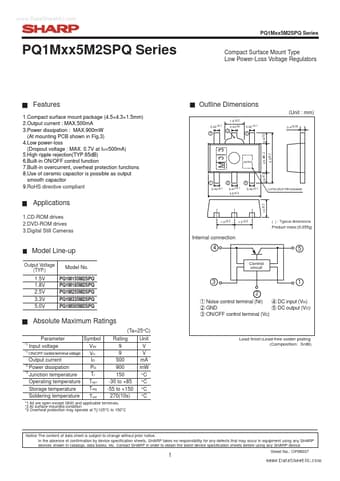

Additional preview pages of the PQ1M255M2SPQ datasheet.

1.Compact surface mount package (4.5×4.3×1.5mm) 2.Output current : MAX.500mA 3.Power dissipation : MAX.900mW (At mounting PCB shown in Fig.3) 4.Low power-loss (Dropout voltage : MAX. 0.7V at IO=500mA) 5.High ripple rejection(TYP.65dB) 6.Built-in ON/OFF control function 7.Built-in overcurrent, overheat protection functions 8.Use of ceramic capacitor is possible as output smooth capacitor 9.RoHS directive compliant.
