IR3M30M Datasheet - Sharp Microelectronics

IR3M30M 3-Output DC-DC Converter

NEW PRODUCT INFORMATION IR3M30M/U ＜Outline＞ 3-output DC-DC Converter for small/medium TFT-LCD panels Under development IR3M30M/U are DC-DC converters for small/medium TFT-LCD panels. These models make it possible to create a power supply system with a single chip, by offering three types of output voltages (-10 V, +5 V, +15 V) from a single www.DataSheet4U.com +3 V operation, unlike a conventional system requiring multiple chips. In addition, the mounting area can be decreased due to its smal.

IR3M30M Datasheet (145.10 KB)

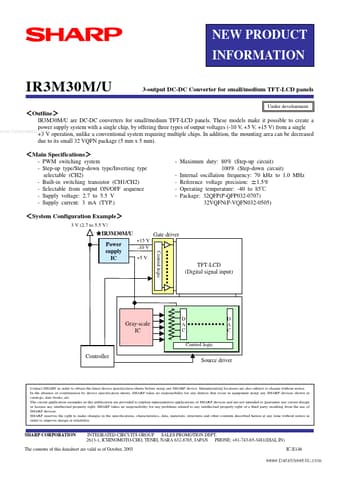

IR3M30M Datasheet Preview — Preview of IR3M30M PDF

Datasheet Details

Part number:

IR3M30M

Manufacturer:

Sharp Microelectronics

File Size:

145.10 KB

Description:

3-output dc-dc converter.
