GP2Y0D02YK0F - Distance Measuring Sensor Unit

Sharp

📥 Download Datasheet

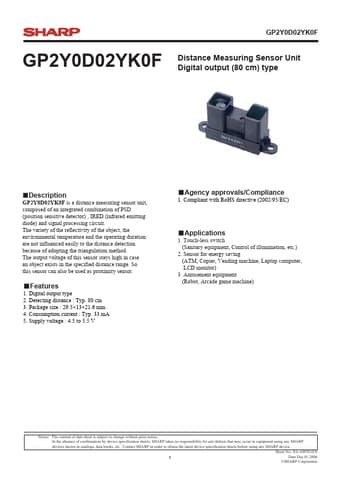

GP2Y0D02YK0F Datasheet Preview — Preview of GP2Y0D02YK0F PDF

Datasheet Details

Part number: GP2Y0D02YK0F
Manufacturer: Sharp
File Size: 455.32 KB
Datasheet: GP2Y0D02YK0F-Sharp.pdf
Description: Distance Measuring Sensor Unit

GP2Y0D02YK0F Product details

Description

GP2Y0D02YK0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit.

Features

1. Digital output type 2. Detecting distance : Typ. 80 cm 3. Package size : 29.5×13×21.6 mm 4. Consumption current : Typ. 33 mA 5. Supply voltage : 4.5 to 5.5 V.
Agency approvals/Compliance 1. Compliant with RoHS directive (2002/95/EC).
