GP2Y0D805Z0F

Distance Measuring Sensor Unit

Sharp

GP2Y0D805Z0F Features

* 1. Digital output type 2. Short distance type Detecting distance : Typ. 50 mm 3. Low profile Package size : 13.6×7×7.95 mm 4. Consumption current : Typ. 5 mA 5. Battery drive compatible Supply voltage : 2.7 to 6.2 V 6. Sunlight tolerance 7. Add Vin terminal, and an external transistor of Vcc line is

GP2Y0D805Z0F General Description

GP2Y0D805Z0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not.

GP2Y0D805Z0F Datasheet (303.73 KB)

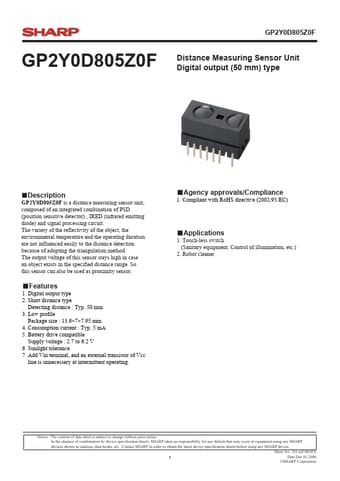

GP2Y0D805Z0F Datasheet Preview — Preview of GP2Y0D805Z0F PDF

Datasheet Details

Part number:

GP2Y0D805Z0F

Manufacturer:

Sharp

File Size:

303.73 KB

Description:

Distance measuring sensor unit.
