PC81711NIP0F, PC8171xNSZ0F Datasheet - Sharp

PC81711NIP0F Low Input Current Photocoupler

PC8171xNSZ0F Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4pin DIP, available in SMT gullwing lead-form option. Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 80V, CTR is 100% to 600% at input current of 0.5mA and CMR is MIN. 10kV/µs.

PC81711NIP0F Features

* 1. 4pin DIP package 2. Double transfer mold package (Ideal for Flow Soldering) 3. Low input current type (IF=0.5mA) 4. High collector-emitter voltage(VCEO : 80V) 5. High noise immunity due to high common rejection voltage (CMR : MIN. 10kV/µs) 6. High isolation voltage between input and output (Viso(

PC8171xNSZ0F-Sharp.pdf

This datasheet PDF includes multiple part numbers: PC81711NIP0F, PC8171xNSZ0F. Please refer to the document for exact specifications by model.

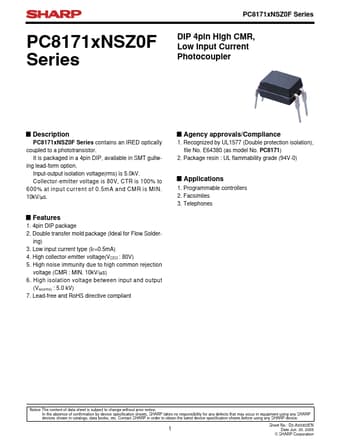

PC81711NIP0F Datasheet Preview Page 2 PC81711NIP0F Datasheet Preview Page 3
