PC817C Datasheet, photocoupler equivalent, Sharp

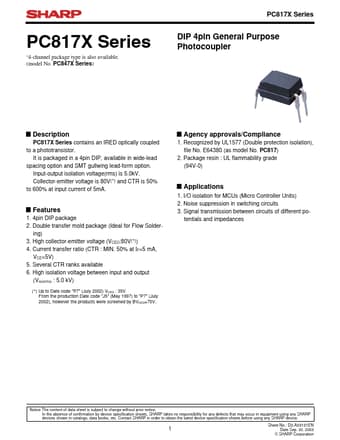

Page 1 of PC817C Page 2 of PC817C Page 3 of PC817C
  • Preview is limited to a maximum of three pages.

PDF File Details

Part number: PC817C

Manufacturer: Sharp

File Size: 240.96KB

Download: 📄 Datasheet

Description: Photocoupler

📥 Download PDF (240.96KB) Datasheet Preview: PC817C

PDF File Details

Part number: PC817C

Manufacturer: Sharp

File Size: 240.96KB

Download: 📄 Datasheet

Description: Photocoupler

PC817C Features and benefits

1. 4pin DIP package 2. Double transfer mold package (Ideal for Flow Solder- ing) 3. High collector-emitter voltage (VCEO:80V(*)) 4. Current transfer ratio (CTR : MIN. 50%.

PC817C Application

1. I/O isolation for MCUs (Micro Controller Units) 2. Noise suppression in switching circuits 3. Signal transmission bet.

PC817C Description

PC817X Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option. Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 8.
