PC817X1NSZ0F, PC817XNNSZ0F Datasheet - Sharp

PC817X1NSZ0F, PC817XNNSZ0F, Photocoupler

PC817XNNSZ0F Series DIP 4pin Photocoupler PC817XNNSZ0F *.
PC817XNNSZ0F Series contains an IRED optically coupled to a phototransistor.

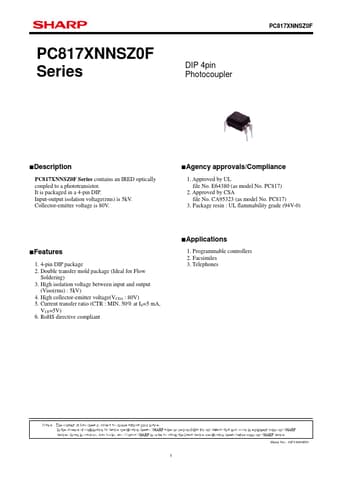

datasheet Preview Page 1 from Datasheet4u.com

PC817XNNSZ0F-Sharp.pdf

PC817X1NSZ0F Datasheet Preview — This datasheet PDF includes multiple part numbers: PC817X1NSZ0F, PC817XNNSZ0F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PC817X1NSZ0F, PC817XNNSZ0F

Manufacturer:

Sharp

File Size:

262.23 KB

Description:

Photocoupler

Note:

This datasheet PDF includes multiple part numbers: PC817X1NSZ0F, PC817XNNSZ0F.
Please refer to the document for exact specifications by model.

Features

* 1. 4-pin DIP package 2. Double transfer mold package (Ideal for Flow Soldering) 3. High isolation voltage between input and output (Viso(rms) : 5kV) 4. High collector-emitter voltage(VCEO : 80V) 5. Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V) 6. RoHS directive compliant
* Applicati

Applications

* 1. Programmable controllers 2. Facsimiles 3. Telephones Notice The content of data sheet is subject to change without prior notice. In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown
