PC817X

Photocoupler

PC817X Features

* 1. 4pin DIP package 2. Double transfer mold package (Ideal for Flow Solder- ing) 3. High collector-emitter voltage (VCEO:80V(

* )) 4. Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V) 5. Several CTR ranks available 6. High isolation voltage between input and output (Viso(rms) : 5.0 kV) (

PC817X General Description

PC817X Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option. Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 80V(
*) and CTR is 50% to 600% at input current .

PC817X Datasheet (Direct Link)

Preview of PC817X PDF

Datasheet Details

Part number:

PC817X

Manufacturer:

Sharp

File Size:

Direct Link

Description:

Photocoupler.

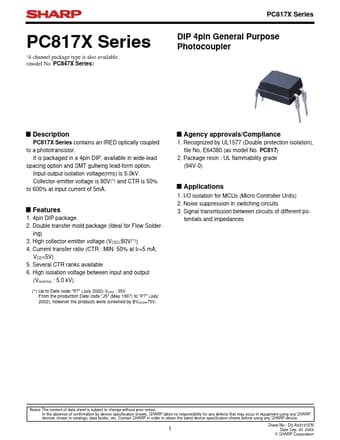

PC817X Series ∗4-channel package type is also available. (model No. PC847X Series) PC817X Series DIP 4pin General Purpose Photocoupler
* Descrip.
