PC817X0NSZ1B, PC817XNNSZ1B, DIP 4pin Photocoupler

PC817XxNSZ1B Series PC817XxNSZ1B Series DIP 4pin Photocoupler * .
PC817XxNSZ1B Series contains an IRED optically coupled to a phototransistor.

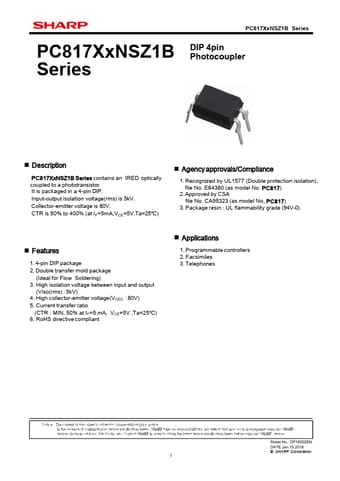

datasheet Preview Page 1 from Datasheet4u.com

PC817XNNSZ1B-Sharp.pdf

PC817X0NSZ1B Datasheet Preview — This datasheet PDF includes multiple part numbers: PC817X0NSZ1B, PC817XNNSZ1B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PC817X0NSZ1B, PC817XNNSZ1B

Manufacturer:

Sharp

File Size:

1.30 MB

Description:

DIP 4pin Photocoupler

Note:

This datasheet PDF includes multiple part numbers: PC817X0NSZ1B, PC817XNNSZ1B.
Please refer to the document for exact specifications by model.

Features

* 1. 4-pin DIP package 2. Double transfer mold package (Ideal for Flow Soldering) 3. High isolation voltage between input and output (Viso(rms) : 5kV) 4. High collector-emitter voltage(VCEO : 80V) 5. Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V ,Ta=25℃) 6. RoHS directive compliant

Applications

* 1. Programmable controllers 2. Facsimiles 3. Telephones Notice The content of data sheet is subject to change without prior noti
