S208T01

Low profile SIP 4pin Triac output SSR

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Sharp Microelectronics of the Americas S208T01F OPTOISO 3KV PWR TRIAC 1CH 4-SIP DigiKey 0 0
$0

S208T01 Datasheet (201.31 KB)

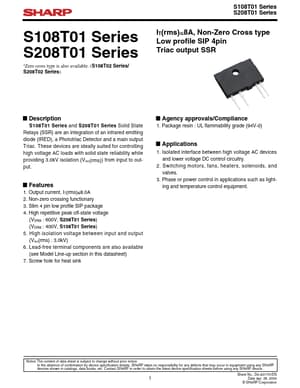

Preview of S208T01 PDF

Datasheet Details

Part number:

S208T01

Manufacturer:

Sharp

File Size:

201.31 KB

Description:

Low profile sip 4pin triac output ssr.
S108T01 Series S208T01 Series ∗Zero cross type is also available. (S108T02 Series/ S208T02 Series) S108T01 Series S208T01 Series IT(rms)≤8A, Non-Zero.

S208T01 Features

* 1. Output current, IT(rms)≤8.0A 2. Non-zero crossing functionary 3. Slim 4 pin low profile SIP package 4. High repetitive peak off-state voltage (VDRM : 600V, S208T01 Series) (VDRM : 400V, S108T01 Series) 5. High isolation voltage between input and output (Viso(rms) : 3.0kV) 6. Lead-free terminal co

S208T01 General Description

S108T01 Series and S208T01 Series Solid State Relays (SSR) are an integration of an infrared emitting diode (IRED), a Phototriac Detector and a main output Triac. These devices are ideally suited for controlling high voltage AC loads with solid state reliability while providing 3.0kV isolation (Viso.
