SGM9114 Datasheet, Driver, Shengbang Microelectronics

SGM9114 Features

  • Driver
  • Excellent Video Performance
  • 5th-Order Reconstruction Filter
  • Internal Gain: 6dB
  • Rail-to-Rail Output
  • SAG Correction Reduces AC Coupling C

PDF File Details

Part number:

SGM9114

Manufacturer:

Shengbang Microelectronics

File Size:

309.79kb

Download:

📄 Datasheet

Description:

5th-order video driver. The SGM9114 is a single rail-to-rail 5th-order output reconstruction filter with a -3dB bandwidth of 8MHz and 33.7V/µs slew rate. Ope

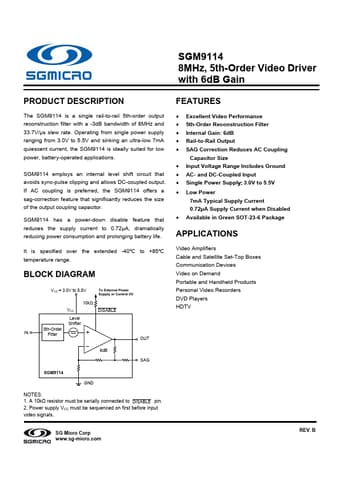

Datasheet Preview: SGM9114 📥 Download PDF (309.79kb)
Page 2 of SGM9114 Page 3 of SGM9114

SGM9114 Application

  • Applications SGM9114 employs an internal level shift circuit that avoids sync-pulse clipping and allows DC-coupled output. If AC coupling is prefe
