SGM9117 Datasheet, Driver, Shengbang Microelectronics

SGM9117 Features

• Driver
• Supply Voltage Range: 2.5V to 5.5V
• Transparent Input Clamping
• Internal Gain: 6dB
• Drive Dual Video Loads
• Quiescent Current: 27.5mA (TYP)

PDF File Details

Part number:

SGM9117

Manufacturer:

Shengbang Microelectronics

File Size:

581.98kb

Download:

📄 Datasheet

Description:

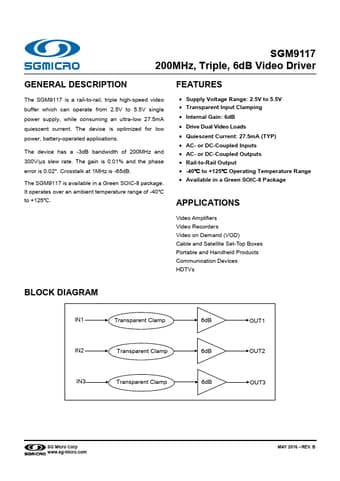

6db video driver. The SGM9117 is a rail-to-rail, triple high-speed video buffer which can operate from 2.5V to 5.5V single power supply, while consumin

SGM9117 Application

• Applications The device has a -3dB bandwidth of 200MHz and 300V/µs slew rate. The gain is 0.01% and the phase error is 0.02°. Crosstalk at 1MHz is
