TS1620-1 Datasheet - Shenzhen

LCD Module

TS1620-1 Features

* y y y y y y y y Display Mode: STN, Negative, Reflective, Olivine Display Formate: 16 Character x 2 Line Viewing Direction: 6 O’Clock Input Data: 4-Bits or 8-Bits interface avaliable Display Font : 5 x 8 Dots Power Supply : Single Power Supply (5V±10%) Driving Scheme : 1/16Duty,1/5Bias BACKLIGHT£¨ SI

TS1620-1 General Description

80.0 *36.0 *1.6 65.00 *14.00 Unit mm mm TS1620-1 LCD Module Specification Ver1.0 2 www.DataSheet4U.com SHENZHEN TECHSTAR ELECTRONICS CO.,LTD 5. PIN ASSIGNMENT No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Symbol Vss Vdd V0 RS R/W E DB0 DB1 DB2 DB3 DB4 DB5 DB6 DB7 BLA BLK Level *-H/.

TS1620-1 Datasheet (401.16 KB)

TS1620-1 Datasheet Preview — Preview of TS1620-1 PDF

Datasheet Details

Part number:

TS1620-1

Manufacturer:

Shenzhen

File Size:

401.16 KB

Description:

Lcd module.

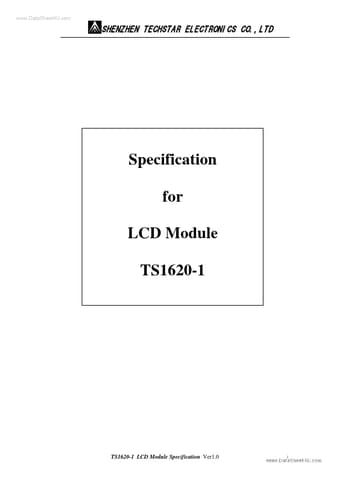

www.DataSheet4U.com SHENZHEN TECHSTAR ELECTRONICS CO.,LTD Specification for LCD Module TS1620-1 TS1620-1 LCD Module Specification Ver1.0 1 www.Da.
