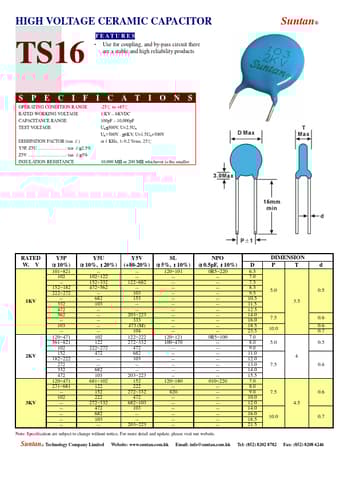

TS16 - HIGH VOLTAGE CERAMIC CAPACITOR
HIGH VOLTAGE CERAMIC CAPACITOR TS16 FEATU RE S ‧ Use for coupling, and by-pass circuit there are a stable and high reliability products S P E C I F I C AT I O N S OPERATING CONDITION RANGE RATED WORKING VOLTAGE -25℃ to +85℃ 1 KV 6KVDC CAPACITANCE RANGE TEST VOLTAGE DISSIPATION FACTOR (tan δ) Y5P, Z5U ………………: tan δ≤2.5% Z5V …….………………: tan δ≤5% INSULATION RESISTANCE 100pF 10,000pF UR≤500V, U=2.5UR UR>500V .
≤6KV, U=1.5UR+500V at 1 KHz, 1±0.2 Vrms.
25℃ 10,000 MΩ or 200 MΩ
