2SA1599 - Switching Power Transistor

📥 Download Datasheet

Datasheet preview – 2SA1599

Datasheet Details

Part number 2SA1599
Manufacturer Shindengen Electric Mfg.Co.Ltd
File Size 397.27 KB
Description Switching Power Transistor
Datasheet download datasheet 2SA1599 Datasheet
Additional preview pages of the 2SA1599 datasheet.

📁 Similar Datasheet

  • 2SA1599 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1599 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1590 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1591 - PNP Epitaxial Planar Silicon Transistors (Sanyo)
  • 2SA1592 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1592 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SA1593 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1593 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SA1593 - Bipolar Transistor (ON Semiconductor)
  • 2SA1598 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Shindengen Electric Mfg.Co.Ltd
  • 2SA1598 - Switching Power Transistor
  • 2SA1600 - Switching Power Transistor
  • 2SA1601 - Switching Power Transistor
  • 2SA1679 - Switching Power Transistor
  • 2SA1795 - Switching Power Transistor
  • 2SA1796 - Switching Power Transistor
  • 2SA1876 - Switching Power Transistor
  • 2SA1877 - Switching Power Transistor

Full PDF Text Transcription

Click to expand full text

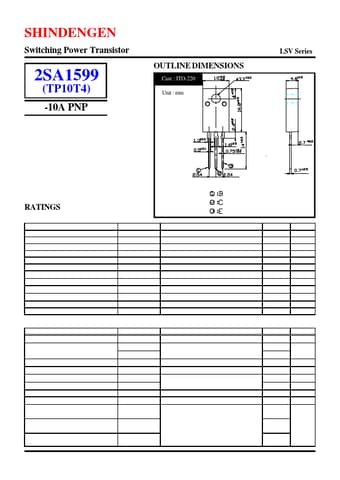

SHINDENGEN Switching Power Transistor LSV Series 2SA1599 (TP10T4) -10A PNP OUTLINE DIMENSIONS Case : ITO-220 Unit : mm RATINGS •œAbsolute Maximum Ratings Item Symbol Conditions Ratings Unit Storage TemperatureTstg -55•`150 •Ž Junction Temperature Tj 150 •Ž Collector to Base Voltage V -60 V CBO Collector to Emitter Voltage V -40 V CEO Emitter to Base Voltage V -7 V EBO Collector Current DC I -10 A C Collector Current Peak I -20 A CP Base Current DC I -1.5 A B Base Current Peak I -2 A BP Total Transistor Dissipation P 25 W T Tc = 25•Ž Dielectric Strength Vdis Terminal to case, AC 12minute kV Mounting Torque TOR (Recommended torque 0.5 : 0.3N¥m) N¥m •œElectrical Characteristics (Tc=25•Ž) Conditions Ratings Item Symbol Unit Collector to EmitterV Sustaining (sus)I = -0.
