S1VB60 - General Purpose Rectifiers(600V 1A)

Datasheet Summary

Features

œ Small Single In-Line(:SIL)Package.
œ High IFSM.
œ Applicable to Automatic Insertion.

Shindengen Electric Mfg.Co.Ltd

📥 Download Datasheet

Datasheet Details

Part number	S1VB60
Manufacturer	Shindengen Electric Mfg.Co.Ltd
File Size	319.76 KB
Description	General Purpose Rectifiers(600V 1A)
Datasheet	S1VB60 Datasheet
Additional preview pages of the S1VB60 datasheet.

📁 Similar Datasheet

S1VB60 - (S1VBxx) BRIDGE RECTIFIER (Shindengen Electric)
S1VB60Z - (S1VBxxZ) BRIDGE RECTIFIER (Shindengen Electric)
S1VB10 - (S1VBxx) BRIDGE RECTIFIER (Shindengen Electric)
S1VB20 - (S1VBxx) BRIDGE RECTIFIER (Shindengen Electric)
S1VB20Z - (S1VBxxZ) BRIDGE RECTIFIER (Shindengen Electric)
S1VB40 - (S1VBxx) BRIDGE RECTIFIER (Shindengen Electric)
S1VB40Z - (S1VBxxZ) BRIDGE RECTIFIER (Shindengen Electric)
S1V - 1 Amp Silicon Rectifier 1200 to 2000 Volts (Micro Commercial Components)

Other Datasheets by Shindengen Electric Mfg.Co.Ltd

S1VB20 - General Purpose Rectifiers(200V 1A)
S1VB80 - General Purpose Rectifiers(800V 1A)
S1VBA20 - General Purpose Rectifiers(200V 1A)
S1VBA60 - General Purpose Rectifiers(600V 1A)

Full PDF Text Transcription

Click to expand full text

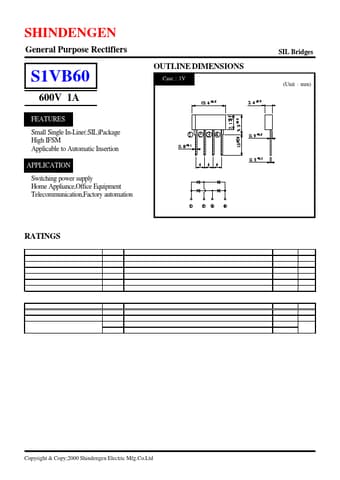

SHINDENGEN General Purpose Rectifiers SIL Bridges S1VB60 600V 1A FEATURES •œ Small Single In-Line(:SIL)Package •œ High IFSM •œ Applicable to Automatic Insertion APPLICATION OUTLINE DIMENSIONS Case : 1V (Unit : mm) •œ Switching power supply •œ Home Appliance,Office Equipment •œ Telecommunication,Factory automation RATINGS •œAbsolute Maximum Ratings (If not specified Tl=25•Ž) Item Symbol Conditions Ratings Storage Temperature Tstg -40•`150 Operating Junction Temperature Tj 150 Maximum Reverse Voltage V 600 RM I Average Rectified Forward Current 1 O 50Hz sine wave,R-load, On glass-epoxy substrate Ta=25•Ž Peak Surge Forward Current IFSM50Hz sine wave,Non-repetitive 1cycle peak value, Tj=25•Ž 30 2 Current Squared Time I t 1ms•…t•ƒ10ms•@Tj=25•Ž 4.

Published: Apr 17, 2005 |
