HDF-0515

(HDF-xxxx) 3W HD Series

HDF-0515 Features

* s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input s Input and Output Filters SPECIFICATIONS INPUT Voltage Max. Input Current Insulation Resistance See Model Selection Table Input Voltage 5V 12V 24V 48V OUTPUT Output Voltage Se

HDF-0515 General Description

PIN # FUNCTION-D FUNCTION-S 1 OUT

* NC 2 COM OUT

* 3 OUT + OUT + 4, 5 IN

* IN

* 6, 7 IN+ IN+ M d lN www.DataSheet4U.com APPLICATION EXAMPLES 1. Reverse Polarity Output IN+ HDF -0505 OUT+ 3. Series Connection of Dual Output modules OUT+ IN+ HDF -0512 IN

* OUT<.

HDF-0515 Datasheet (108.51 KB)

Preview of HDF-0515 PDF

Datasheet Details

Part number:

HDF-0515

Manufacturer:

Shindengen

File Size:

108.51 KB

Description:

(hdf-xxxx) 3w hd series.

📁 Related Datasheet

HDF-0512 - (HDF-xxxx) 3W HD Series (Shindengen)
3 Watt HD Series FEATURES s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input .

HDF-0505 - (HDF-xxxx) 3W HD Series (Shindengen)
3 Watt HD Series FEATURES s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input .

HDF-1205 - (HDF-xxxx) 3W HD Series (Shindengen)
3 Watt HD Series FEATURES s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input .

HDF-1212 - (HDF-xxxx) 3W HD Series (Shindengen)
3 Watt HD Series FEATURES s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input .

HDF-1215 - (HDF-xxxx) 3W HD Series (Shindengen)
3 Watt HD Series FEATURES s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input .

HDF-2405 - (HDF-xxxx) 3W HD Series (Shindengen)
3 Watt HD Series FEATURES s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input .

HDF-2412 - (HDF-xxxx) 3W HD Series (Shindengen)
3 Watt HD Series FEATURES s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input .

HDF-2415 - (HDF-xxxx) 3W HD Series (Shindengen)
3 Watt HD Series FEATURES s UL1950 Recognized s Input-Output Isolation s Compact, Single In-Line Package s Single and Dual Output s Wide-Range Input .

TAGS

HDF-0515 HDF-xxxx Series Shindengen

Image Gallery

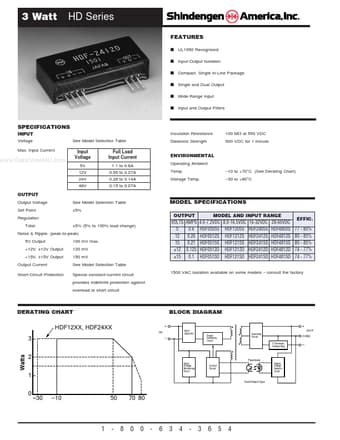

HDF-0515 Datasheet Preview Page 2 HDF-0515 Datasheet Preview Page 3
