HDF480A Datasheet - Shoulder

HDF480A SAW Filter

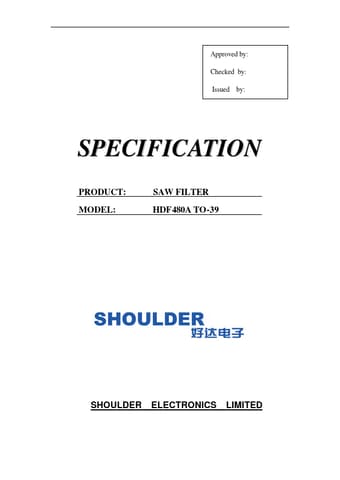

Approved by: Checked by: Issued by: SPECIFICATION PRODUCT: MODEL: SAW FILTER HDF480A TO-39 SHOULDER ELECTRONICS LIMITED SHOULDER ELECTRONICS LIMITED 1. SCOPE This specification shall cover the characteristics of SAW filter with 480MHz used for DBS receiver. 2. ELECTRICAL SPECIFICATION DC Voltage VDC AC Voltage Vpp Operation temperature Storage temperature RF Power Dissipation 10V 10V50Hz/60Hz -20¡æto +60¡æ -45¡æto +85¡æ 0dBm Electronic Characteristics 2-1.Typical frequency response 2-2..
