AST10-2305D-M, AST10-2303D-M, AC/DC Converter

AC/DC Converter * Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range * Operating ambient temperature range: -40℃ to +85℃ * Up to.
AST10-23XXD-M series AC-DC converters features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple &.

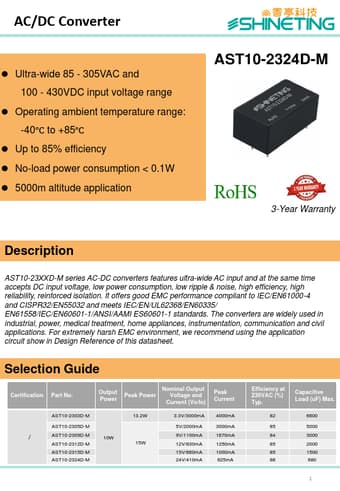

datasheet Preview Page 1 from Datasheet4u.com

AST10-2303D-M-Shineting.pdf

AST10-2305D-M Datasheet Preview — This datasheet PDF includes multiple part numbers: AST10-2305D-M, AST10-2303D-M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AST10-2305D-M, AST10-2303D-M

Manufacturer:

Shineting

File Size:

848.57 KB

Description:

AC/DC Converter

Note:

This datasheet PDF includes multiple part numbers: AST10-2305D-M, AST10-2303D-M.
Please refer to the document for exact specifications by model.

Features

* ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/ EN61558/IEC/EN60601-1

Applications

* For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet. Selection Guide Certification Part No. Output Power Peak Power Nominal Output Voltage and Current (Vo/Io) Peak Current AST10-2303D-M 13.2W AST10-2305D-M / AST10-230
