805 - Emitter Tube

Datasheet Summary

Description

Direct heating thorium-tungsten cathode triodes 805, it can be used as class B, C, A-F and R-F power amplification in high frequency operation.

805 is compatible with GL-805, and can be substituted with each other.

📥 Download Datasheet

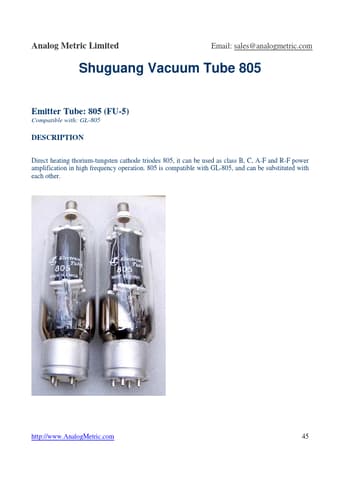

Datasheet preview – 805

Datasheet Details

Part number 805
Manufacturer Shuguang
File Size 88.53 KB
Description Emitter Tube
Datasheet download datasheet 805 Datasheet
Additional preview pages of the 805 datasheet.

📁 Similar Datasheet

  • 8050 - NPN Transistor (Micro Electronics)
  • 8050 - NPN TRANSISTOR (Stanson Technology)
  • 8050 - NPN Transistor (Fairchild Semiconductor)
  • 8050 - NPN Transistor (INCHANGE)
  • 8050 - NPN Transistor (SEMTECH)
  • 8050AH - HMOS SINGLE-COMPONENT 8-BIT MICROCONTROLLER (Intel Corporation)
  • 8050C - NPN Transistor (SEMTECH)
  • 8050D - NPN Transistor (SEMTECH)
  • 8050G - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 8050HSLT1 - NPN Transistor (WILLAS)
Other Datasheets by Shuguang

    Full PDF Text Transcription

    Click to expand full text
    Analog Metric Limited Email: sales@analogmetric.com Shuguang Vacuum Tube 805 Emitter Tube: 805 (FU-5) Compatible with: GL-805 DESCRIPTION Direct heating thorium-tungsten cathode triodes 805, it can be used as class B, C, A-F and R-F power amplification in high frequency operation. 805 is compatible with GL-805, and can be substituted with each other. http://www.AnalogMetric.com 45 Analog Metric Limited SPECIFICATION Filament Heating Uf ………………………10 V If………………………3.25 A Maximum Ratings Plate voltage……………………….1500 V Plate power dissipation..……………125 W Capacitance Input capacitance……………………8.5pF Output capacitance…………………10.5pF Muller capacitance……………………6.
