NP3505 - PRESS-FIT STRAIGHT LEAD DIODES

Datasheet Summary

Features

. . High current capability . . Low forward voltage drop . . Low leakage current . . High surge current capability.

Shunye

📥 Download Datasheet

Datasheet Details

Part number	NP3505
Manufacturer	Shunye
File Size	189.01 KB
Description	PRESS-FIT STRAIGHT LEAD DIODES
Datasheet	NP3505 Datasheet
Additional preview pages of the NP3505 datasheet.

📁 Similar Datasheet

NP3502 - Press Fit Auto Rectifier (Naina Semiconductor)
NP3502R - Press Fit Auto Rectifier (Naina Semiconductor)
NP3504 - Press Fit Auto Rectifier (Naina Semiconductor)
NP3504R - Press Fit Auto Rectifier (Naina Semiconductor)
NP3506 - Press Fit Auto Rectifier (Naina Semiconductor)
NP3506R - Press Fit Auto Rectifier (Naina Semiconductor)
NP352 - Fine Ball Grid Array (Yamaichi)
NP3520 - TVS Auto Rectifier (Naina Semiconductor)
NP3520R - TVS Auto Rectifier (Naina Semiconductor)
NP3524 - TVS Auto Rectifier (Naina Semiconductor)

Other Datasheets by Shunye

NP351 - PRESS-FIT STRAIGHT LEAD DIODES
NP352 - PRESS-FIT STRAIGHT LEAD DIODES
NP353 - PRESS-FIT STRAIGHT LEAD DIODES
NP354 - PRESS-FIT STRAIGHT LEAD DIODES
NP355 - PRESS-FIT STRAIGHT LEAD DIODES
NP356 - PRESS-FIT STRAIGHT LEAD DIODES

Full PDF Text Transcription

Click to expand full text

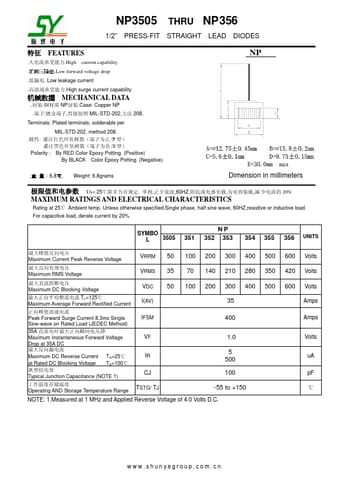

NP3505 THRU NP356 1/2” PRESS-FIT STRAIGHT LEAD DIODES FEATURES ..High current capability ..Low forward voltage drop .. Low leakage current ..High surge current capability MECHANICAL DATA .: NP.Case: Copper NP .:, MIL-STD-202, 208. Terminals: Plated terminals, solderable per MIL-STD-202, method 208. .: （/P ）（/N ） Polarity : By RED Color Epoxy Potting. (Positive) By BLACK Color Epoxy Potting. (Negative) NP . ：6.8. Weight: 6.8grams Dimension in millimeters TA= 25℃. ,,60HZ,., 20% MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ Ambient temp. Unless otherwise specified.Single phase, half sine wave, 60HZ,resistive or inductive load.
