SR1030C, SR1020C Datasheet - Shunye

SR1020C-Shunye.pdf

This datasheet PDF includes multiple part numbers: SR1030C, SR1020C. Please refer to the document for exact specifications by model.
SR1030C Datasheet Preview Page 2

Datasheet Details

Part number:

SR1030C, SR1020C

Manufacturer:

Shunye

File Size:

256.48 KB

Description:

Schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: SR1030C, SR1020C.
Please refer to the document for exact specifications by model.

SR1030C, SR1020C, SCHOTTKY BARRIER RECTIFIER

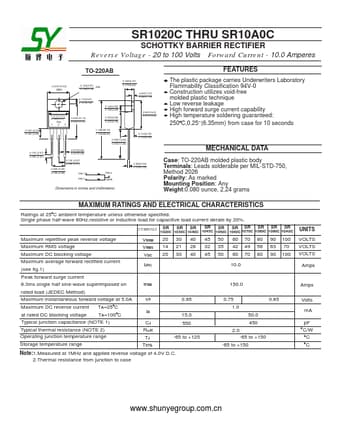

SR1020C THRU SR10A0C SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 10.0 Amperes 0.160 (4.05) 0.140 (3.55) 0.105 (2.67) 0.095 (2.41) TO-220AB 0.415(10.54) MAX 0.410(10.41) 0.390(9.91) PIN 123 0.154(3.91) DIA 0.148(3.74) 0.113(2.87) 0.103(2.62) 0.635(16.13) 0.625(15.87) 0.185(4.70) 0.175(4.44) 0.055(1.27) 0.045(1.14) 0.145(3.68) 0.135(3.43) 0.350(8.89) 0.330(8.38) 0.560(14.2) 0.530(13.4) 1.148(29.16) 1.118(28.40) 0.590(14.22) 0.530(13.46) 0.110(2.79) 0.100

SR1030C Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C,0.25”(6.35mm) from case for 10 seconds MECHANICAL DATA
