SR1070C SCHOTTKY BARRIER RECTIFIER

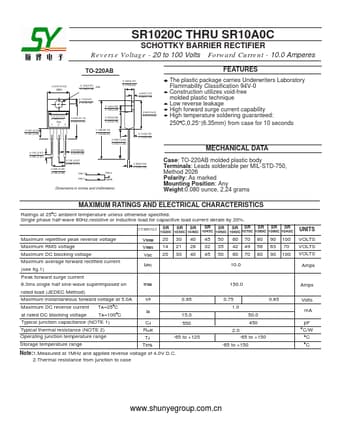

SR1020C THRU SR10A0C SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 10.0 Amperes 0.160 (4.05) 0.140 (3.55) 0.105 (2.67) 0.095 (2.41) TO-220AB 0.415(10.54) MAX 0.410(10.41) 0.390(9.91) PIN 123 0.154(3.91) DIA 0.148(3.74) 0.113(2.87) 0.103(2.62) 0.635(16.13) 0.625(15.87) 0.185(4.70) 0.175(4.44) 0.055(1.27) 0.045(1.14) 0.145(3.68) 0.135(3.43) 0.350(8.89) 0.330(8.38) 0.560(14.2) 0.530(13.4) 1.148(29.16) 1.118(28.40) 0.590(14.22) 0.530(13.46) 0.110(2.79) 0.100.

SR1070C Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C,0.25”(6.35mm) from case for 10 seconds MECHANICAL DATA
