SR2090C, SR2020C Datasheet - Shunye

SR2090C SCHOTTKY BARRIER RECTIFIER

SR2020C THRU SR20A0C SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 20.0 Amperes 0.160 (4.05) 0.140 (3.55) 0.105 (2.67) 0.095 (2.41) TO-220AB 0.415(10.54) MAX 0.410(10.41) 0.390(9.91) PIN 123 0.154(3.91) DIA 0.148(3.74) 0.113(2.87) 0.103(2.62) 0.635(16.13) 0.625(15.87) 0.185(4.70) 0.175(4.44) 0.055(1.27) 0.045(1.14) 0.145(3.68) 0.135(3.43) 0.350(8.89) 0.330(8.38) 0.560(14.2) 0.530(13.4) 1.148(29.16) 1.118(28.40) 0.590(14.22) 0.530(13.46) 0.110(2.79) 0.100.

SR2090C Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C,0.25”(6.35mm) from case for 10 seconds MECHANICAL DATA

SR2020C-Shunye.pdf

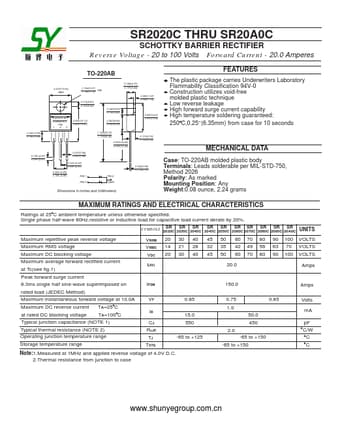

SR2090C Datasheet Preview — This datasheet PDF includes multiple part numbers: SR2090C, SR2020C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SR2090C, SR2020C

Manufacturer:

Shunye

File Size:

256.48 KB

Description:

Schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: SR2090C, SR2020C.
Please refer to the document for exact specifications by model.
