SE1020W - Transimpedance Amplifier

SiGe Semiconductor Inc.

📥 Download Datasheet

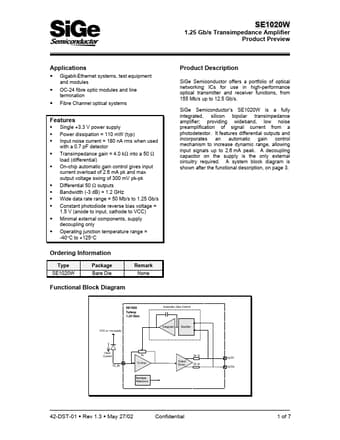

SE1020W Datasheet Preview — Preview of SE1020W PDF

Datasheet Details

Part number: SE1020W
Manufacturer: SiGe Semiconductor Inc.
File Size: 272.96 KB
Datasheet: SE1020W_SiGeSemiconductorInc..pdf
Description: Transimpedance Amplifier

SE1020W Product details

Description

SiGe Semiconductor offers a portfolio of optical networking ICs for use in high-performance optical transmitter and receiver functions, from 155 Mb/s up to 12.5 Gb/s.

Features

differential outputs and incorporates an automatic gain control mechanism to increase dynamic range, allowing input signals up to 2.6 mA peak. A decoupling capacitor on the supply is the only external circuitry required. A system block diagram is shown after the functional.
