Description

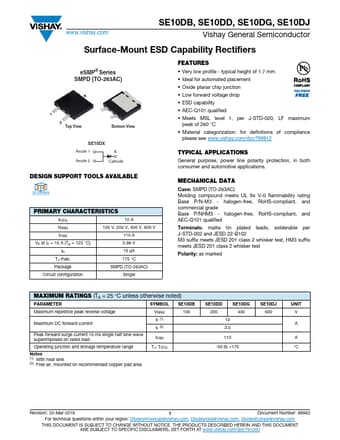

www.vishay.com SE10DB, SE10DD, SE10DG, SE10DJ Vishay General Semiconductor Surface Mount ESD Capability Rectifiers eSMP® Series TO-263AC (SMPD) K .
Features
* Very low profile - typical height of 1.7 mm
* Ideal for automated placement
* Oxide planar chip junction
* Low forward voltage drop
* ESD capability
* AEC-Q101 qualified
* Meets MSL level 1, per J-STD-020, LF maximum
peak of 260 °C
Applications
* General purpose, power line polarity protection, in both consumer and automotive applications. PRIMARY CHARACTERISTICS
IF(AV)
10 A
VRRM
100 V, 200 V, 400 V, 600 V
IFSM VF at IF = 10 A (TA = 125 °C)
IR
110 A 0.96 V 15 μA
TJ max. 175 °C
Package
TO-263AC (SMPD)
Diode variations
Single
MEC
