SE10FD - Surface-Mount Standard Rectifiers

Vishay

📥 Download Datasheet

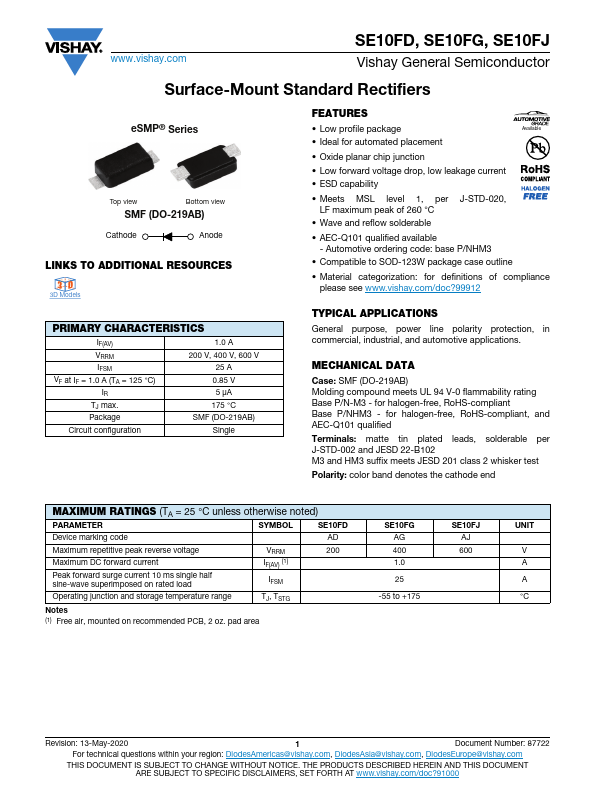

SE10FD Datasheet Preview — Preview of SE10FD PDF

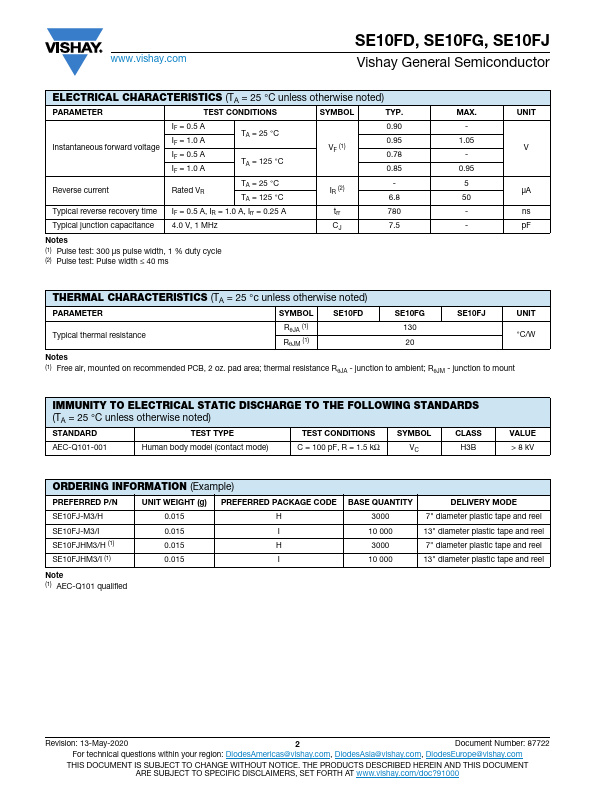

datasheet Preview Page 2

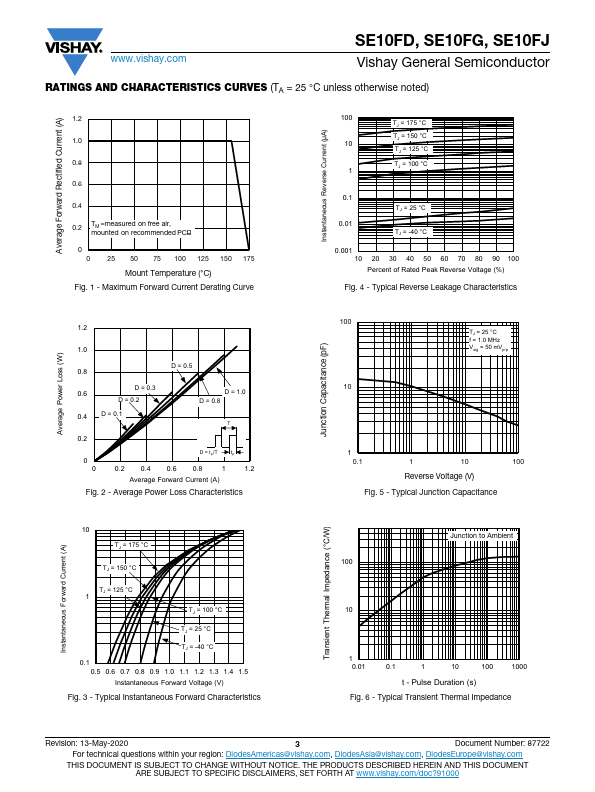

datasheet Preview Page 3

Datasheet Details

Part number: SE10FD
Manufacturer: Vishay ↗
File Size: 107.22 KB
Datasheet: SE10FD-Vishay.pdf
Description: Surface-Mount Standard Rectifiers

SE10FD Product details

Features

Low profile package Available.
Ideal for automated placement.
Oxide planar chip junction.
Low forward voltage drop, low leakage current.
ESD capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Wave and reflow solderable.
AEC-Q101 qualified available - Automotive ordering code: base P/NHM3.
Compatible to SOD-123W package case outline.
Material categorization: for definitions.
