PS113 - 3-Channel Secondary Monitoring IC

Datasheet Summary

Description

PS113 is specially designed for switching power supply system.

Three important functions of PS113 are the following: over-voltage protection, short circuit protection and power good signal generating.

Features

z z z z z z z z z z z z Over voltage protection and lock out Short circuit protection and lock out Fault protection output with open drain output stage Open drain power good output signal for power good input Built-in 300ms power good delay 75ms delay for short-circuit turn on protection 38ms PSON control de-bounce 73us de-bounce for noise immunity Wide power supply range from 4V to 16V Pin to pin compatible with TPS3510 Special care for AC power off Additional 12V UVP protection 3-Channel Seco.

Datasheet Details

Part number	PS113
Manufacturer	SiTI
File Size	87.90 KB
Description	3-Channel Secondary Monitoring IC
Datasheet	PS113 Datasheet
Additional preview pages of the PS113 datasheet.

📁 Similar Datasheet

PS11011 - Application Specific Intelligent Power-Module (Powerex Power)

PS11012 - Application Specific Intelligent Power-Module (Powerex Power)

PS11013 - Application Specific Intelligent Power-Module (Powerex Power)

PS11014 - Application Specific Intelligent Power-Module (Powerex Power)

PS11015 - Application Specific Intelligent Power-Module (Powerex Power)

PS11016 - Application Specific Intelligent Power-Module (Powerex Power)

PS11016 - Acoustic noise-less 2.2kW/AC200V class 3 phase inverter and other motor control applications (Mitsubishi Electric Semiconductor)

PS11017 - Application Specific Intelligent Power-Module (Powerex Power)

PS1102HA - Surface Mount Phototransistor (Stanley Electric)

PS11032 - Intellimod Module Application Specific IPM (Powerex Power)

Full PDF Text Transcription

Click to expand full text

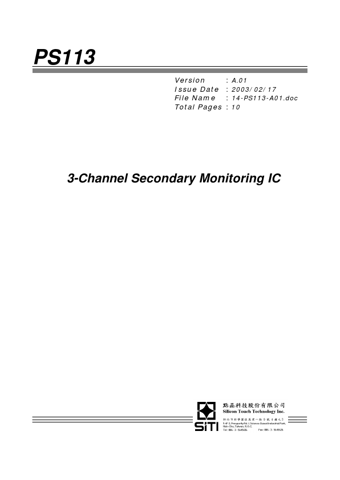

PS113 Version Issue Date File Name Total Pages : A.007 : 2010/02/05 : SP-PS113-A.007.doc : 10 3-Channel Secondary Monitoring IC 9 7 1 SILICON TOUCH TECHNOLOGY INC. 9-7F-1, Prosperity Road I, Science Based Industrial Park, Hsin-Chu, Taiwan 300, R.O.C. Tel：886-3-5645656 Fax：886-3-5645626 PS113 PS113 3-Channel Secondary Monitoring IC General Description PS113 is specially designed for switching power supply system. Three important functions of PS113 are the following: over-voltage protection, short circuit protection and power good signal generating. OVP (Over Voltage Protection) monitors 5V, 12V and 3.3V to protect our power supply and PC, when one of these supply voltages exceeds their normal operation voltage. Short circuit protection is done by UVP (Under Voltage Protection).
