PS11013 - Application Specific Intelligent Power-Module

PS11013 Description

MITSUBISHI MITSUBISHI SEMICONDUCTOR SEMICONDUCTOR Module> PS1.

PS11013 Features

* Converter bridge for 3 phase AC-to-DC power conversion.
* Circuit for dynamic braking of motor regenerative energy.
* 3-phase IGBT inverter bridge configured by the latest 3rd. generation IGBT and diode technology.
* Inverter output current capability IO (Note 1): T

PS11013 Applications

* PACKAGE OUTLINES 4-R2 0.5 V 6 12 3 4 5 6 7 8 91011121314151617181920212223 Terminals Assignment: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 CBU+ CBU
* CBV+ CBV
* CBW+ CBW
* GND NC VDH CL FO1 FO2 FO3 CU CV CW UP VP WP UN 21 VN 22 WN 23 Br 2424 24 4 2 ± 0.3 84.2 ± 1

📥 Download Datasheet

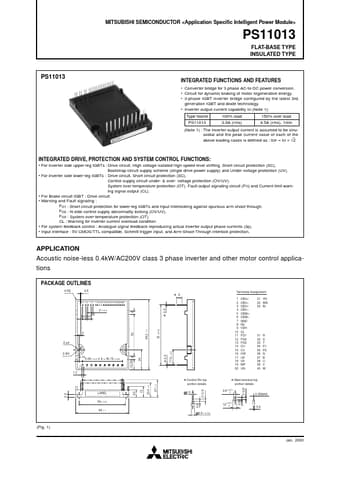

Preview of PS11013 PDF
