PS11035 Datasheet - Mitsubishi Electronics

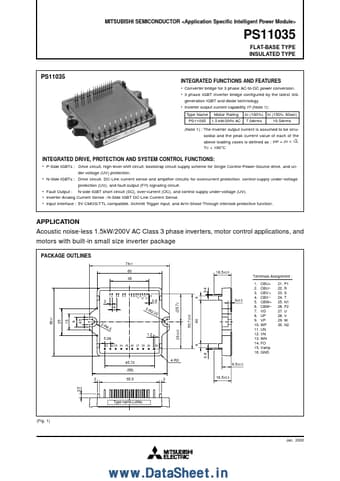

PS11035, flat Base Type Insulated Type

MITSUBISHI MITSUBISHI SEMICONDUCTOR SEMICONDUCTOR Module> PS1.
 Datasheet Preview Page 1

PS11035_MitsubishiElectronics.pdf

Preview of PS11035 PDF

Datasheet Details

Part number:

PS11035

Manufacturer:

Mitsubishi Electronics

File Size:

100.59 KB

Description:

flat Base Type Insulated Type

Features

* Converter bridge for 3 phase AC-to-DC power conversion.
* 3 phase IGBT inverter bridge configured by the latest 3rd. generation IGBT and diode technology.
* Inverter output current capability I O (Note 1): Type Name Motor Rating IO (100%) IO (150%; 60sec) 10.5Arms PS11035 1

Applications

* and motors with built-in small size inverter package PACKAGE OUTLINES 74±1 60 36 0.4 16.5±0.5 Terminals Assignment : 1. CBU+ 2. CBU
* 3. CBV+ 4. CBV
* 5. CBW+ 6. CBW
* 7. VD 8. UP 9. VP 10. WP 11. UN 12. VN 13. WN 14. FO 15. Vamp 16. GND 21. P1 22. R 23. S 24. T 25. N1 26. P2
