BB619C Datasheet - Siemens Group

BB619C Silicon Variable Capacitance Diode (For tuning of extended frequency band in VHF TV/ VTR tuners)

BB 619C Silicon Variable Capacitance Diode For tuning of extended frequency band in VHF TV/ VTR tuners Type BB 619C Marking Ordering Code yellow S Q62702-B683 Pin Configuration 1=C 2=A Package SOD-123 Maximum Ratings Parameter Diode reverse voltage Peak reverse voltage (R ≥ 5kΩ) Forward current Operating temperature range Storage temperature Thermal Resistance Junction - ambient Symbol Values 30 35 20 - 55 + 125 - 55 + 150 mA °C Unit V VR VRM IF Top Tstg RthJA ≤ 450 K/W Sem.

BB619C_SiemensSemiconductorGroup.pdf

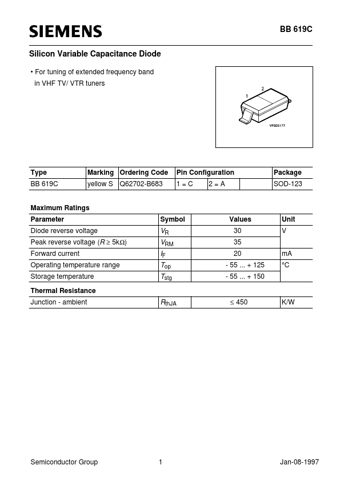

Preview of BB619C PDF
BB619C Datasheet Preview Page 2 BB619C Datasheet Preview Page 3

Datasheet Details

Part number:

BB619C

Manufacturer:

Siemens Group

File Size:

21.36 KB

Description:

Silicon variable capacitance diode (for tuning of extended frequency band in vhf tv/ vtr tuners).
