BAT14-020D Datasheet - Siemens Semiconductor Group

BAT14-020D Silicon Schottky Diodes

Silicon Schottky Diodes q q q q BAT 14- … D Beam lead technology Low dimension High performance Medium barrier ESD: Electrostatic discharge sensitive device, observe handling precautions! Type BAT 14-020 D BAT 14-050 D BAT 14-090 D BAT 14-110 D Maximum Ratings Parameter Symbol Values BAT 14-020 D BAT 14-050 D Reverse voltage Forward current Junction temperature Storage temperature range Operating temperature range VR IF Tj Tstg Top 4 100 175 65 … + 150 65 … + 150 BAT 14-09.

BAT14-020D_SiemensSemiconductorGroup.pdf

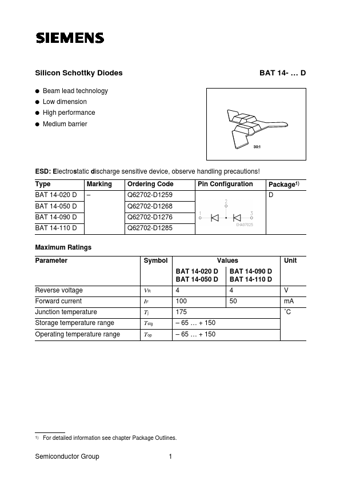

Preview of BAT14-020D PDF
BAT14-020D Datasheet Preview Page 2

Datasheet Details

Part number:

BAT14-020D

Manufacturer:

Siemens Semiconductor Group

File Size:

16.34 KB

Description:

Silicon schottky diodes.
