BSS89 Datasheet - Siemens Semiconductor Group

BSS89 SIPMOS Small-Signal Transistor

BSS 89 SIPMOS ® Small-Signal Transistor N channel Enhancement mode Logic Level VGS(th) = 0.82.0V Pin 1 G Type BSS 89 Type BSS 89 BSS 89 BSS 89 Pin 2 D Marking SS89 Pin 3 S VDS 240 V ID 0.3 A RDS(on) 6Ω Package TO-92 Ordering Code Q62702-S519 Q62702-S619 Q62702-S385 Tape and Reel Information E6288 E6296 E6325 Maximum Ratings Parameter Drain source voltage Drain-gate voltage Symbol Values 240 240 Unit V VDS V DGR RGS = 20 kΩ Gate source voltage G.

BSS89 Datasheet (79.51 KB)

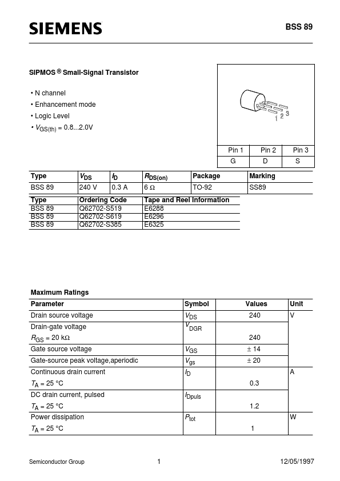

Preview of BSS89 PDF

Datasheet Details

Part number:

BSS89

Manufacturer:

Siemens Semiconductor Group

File Size:

79.51 KB

Description:

Sipmos small-signal transistor.
