BUP200 Datasheet - Siemens Semiconductor Group

BUP200 IGBT

BUP 200 IGBT Preliminary data Low forward voltage drop High switching speed Low tail current Latch-up free Avalanche rated Pin 1 G Type BUP 200 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage Symbol Values 1200 1200 Unit V Pin 2 C Ordering Code Q67078-A4400-A2 Pin 3 E VCE IC Package TO-220 AB 1200V 3.6A VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 3.6 2.4 TC = 25 °C TC = 90 °C Pu.

BUP200_SiemensSemiconductorGroup.pdf

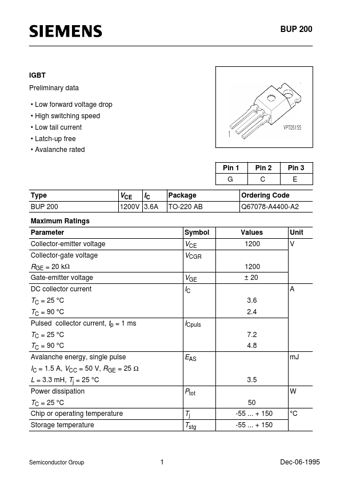

Preview of BUP200 PDF
BUP200 Datasheet Preview Page 2 BUP200 Datasheet Preview Page 3

Datasheet Details

Part number:

BUP200

Manufacturer:

Siemens Semiconductor Group

File Size:

300.40 KB

Description:

Igbt.
