DLG1414 Datasheet - Siemens Semiconductor Group

DLG1414 4-character 5 x 7 Dot Matrix Alphanumeric Intelligent Display

The DLR/DLO/DLG1414 is a four digit 5x7 dot matrix display module with a built-in CMOS integrated circuit. This display is a drop-in dot matrix replacement for the DL1414T with segmented characters. The integrated circuit contains memory, ASCII ROM decoder, multiplex circuitry and drivers. Data entr.

DLG1414 Features

* Dot Matrix Replacement for DL1414T

* 0.145" High, Dot Matrix Character

* 128 Special ASCII Characters for English, German, Italian, Swedish, Danish, and Norwegian Languages

* Wide Viewing Angle: X Axis ± 50°, Y Axis ± 75°

* Close Vertical Row Spacing, 0.800"

DLG1414_SiemensSemiconductorGroup.pdf

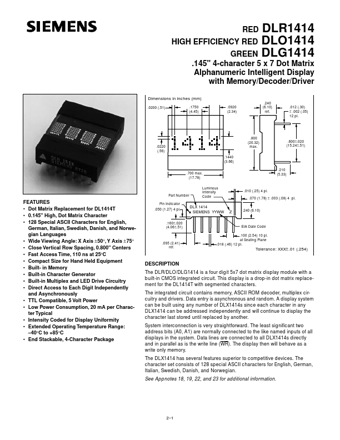

DLG1414 Datasheet Preview — Preview of DLG1414 PDF

Datasheet Details

Part number:

DLG1414

Manufacturer:

Siemens Semiconductor Group

File Size:

201.76 KB

Description:

4-character 5 x 7 dot matrix alphanumeric intelligent display.
