DLG5736 Datasheet - Siemens Semiconductor Group

Single Character 5x7 Dot Matrix Alphanumeric Display

DLG5736 Features

* DLR/DLG 5735 Common Row Cathode

* DLR/DLG 5736 Common Row Anode

* 5x7 Matrix Array with Row-Column Select

* End & Side Stackable

* Rugged Encapsulation (Filled Reflector Con- struction)

* Compatible with ASCII and EBCDIC Format

* Standard 12 p

DLG5736 General Description

The DLR 5735/5736 Series (gallium arsenide phosphide) and the DLG 5735/5736 Series (gallium phosphide) are 5x7 dot matrix light emitting diode alphanumeric displays. Compatible with ASCII and EBCDIC formats, these displays are well suited for use in keyboard verfiers, computer peripheral equipment, a.

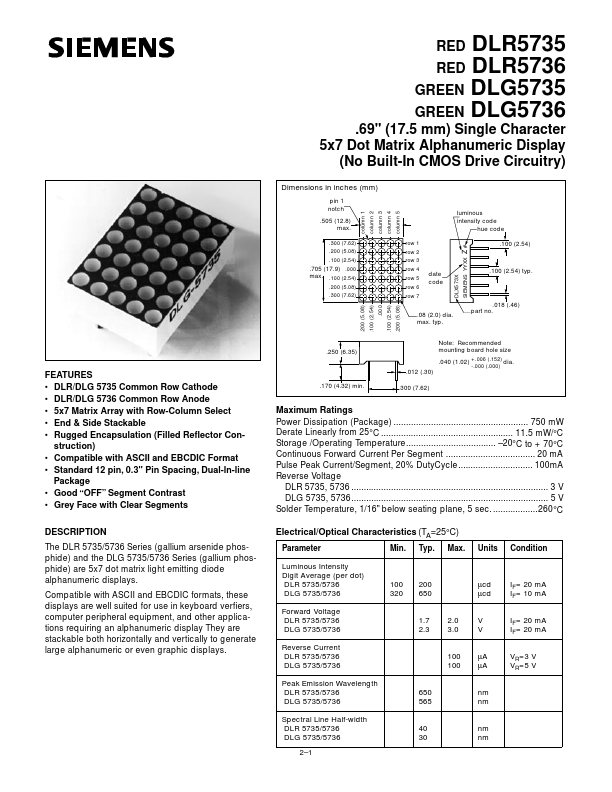

DLG5736 Datasheet (37.75 KB)

Preview of DLG5736 PDF

Datasheet Details

Part number:

DLG5736

Manufacturer:

Siemens Semiconductor Group

File Size:

37.75 KB

Description:

Single character 5x7 dot matrix alphanumeric display.
RED DLR5735 RED DLR5736 GREEN DLG5735 GREEN DLG5736 .69" (17.5 mm) Single Character 5x7 Dot Matrix Alphanumeric Display (No Built-In CMOS Drive Circui.
