IL202 Datasheet - Siemens Semiconductor Group

PHOTOTRANSISTOR OPTOCOUPLER

IL202 Features

* High Current Transfer Ratio, 75% to 450%

* Minimum Current Transfer Ratio, 10%

* Guaranteed at IF=1mA

* High Collector-Emitter Voltage, BVCEO=70V

* Long Term Stability

* Industry Standard DIP Package

* Underwriters Lab File #E52744

IL202 General Description

The IL201/202/203 are optically coupled pairs employing a Gallium Arsenide infrared LED and a Silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The IL201/202/ 203 c.

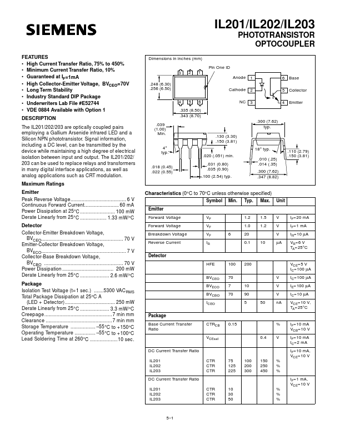

IL202 Datasheet (69.58 KB)

IL202 Datasheet Preview — Preview of IL202 PDF

Datasheet Details

Part number:

IL202

Manufacturer:

Siemens Semiconductor Group

File Size:

69.58 KB

Description:

Phototransistor optocoupler.
