IL205A - SMALL OUTLINE SURFACE MOUNT PHOTOTRANSISTOR OPTOCOUPLER

Product Overview

Siemens Semiconductor Group

📥 Download Datasheet

IL205A SMALL OUTLINE SURFACE MOUNT PHOTOTRANSISTOR OPTOCOUPLER by Siemens Semiconductor Group - Datasheet Preview — Datasheet preview – IL205A

Datasheet Details

Part number	IL205A
Manufacturer	Siemens Semiconductor Group
File Size	46.47 KB
Description	SMALL OUTLINE SURFACE MOUNT PHOTOTRANSISTOR OPTOCOUPLER
Datasheet	IL205A Datasheet
Note	This datasheet PDF includes multiple part numbers: IL205A, IL2. Please refer to the document for exact specifications by model.

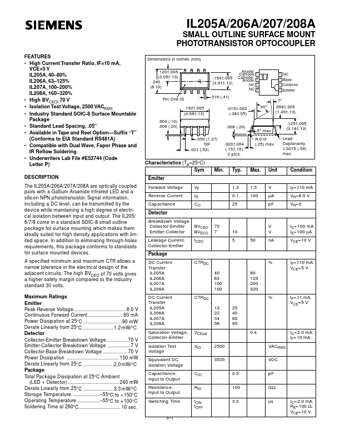

Additional preview pages of the IL205A datasheet.

Product details

Description

The IL205A/206A/207A/208A are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor.

Features

High Current Transfer Ratio, IF=10 mA, VCE=5 V IL205A, 40.
80% IL206A, 63.
125% IL207A, 100.
200% IL208A, 160.
320%.
High BVCEO, 70 V.
Isolation Test Voltage, 2500 VACRMS.
Industry Standard SOIC-8 Surface Mountable Package.
Standard Lead Spacing, .05".
Available in Tape and Reel Option.
Sufﬁx “T” (Conforms to EIA Standard RS481A).
Compatible with Dual Wave, Fapor Phase and IR Reﬂow Soldering.
