IL300 - LINEAR OPTOCOUPLER

The IL300 Linear Optocoupler consists of an AlGaAs IRLED irradiating an isolated feedback and an output PIN photodiode in a bifurcated arrangement.

The feedback photodiode captures a percentage of the LED's flux and generates a control signal (IP1) that can be used to servo the LED drive current.

Thi

IL300 Features

* Couples AC and DC signals

* 0.01% Servo Linearity

* Wide Bandwidth, >200 KHz

* High Gain Stability, ±0.005%/C

* Low Input-Output Capacitance

* Low Power Consumption, < 15mw

* Isolation Test Voltage, 5300 VACRMS, 1 sec.

* Internal Insu

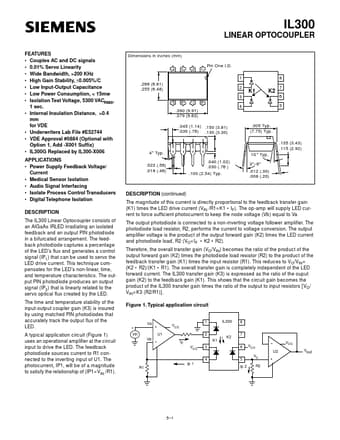

IL300_SiemensSemiconductorGroup.pdf
