IL31 Datasheet, Optocoupler, Siemens Semiconductor Group

IL31 Features

  • Optocoupler
  • Current Transfer Ratio IL/ILD/ILQ30/55, 100% min. IL/ILD/ILQ31, 200% min.
  • 125 mA Load Current Rating
  • Fast Rise Time, 10 µS
  • Fast Fall Time, 35 µS

PDF File Details

Part number:

IL31

Manufacturer:

Siemens Semiconductor Group

File Size:

63.85kb

Download:

📄 Datasheet

Description:

Photodarlington optocoupler. The IL30/31/55, ILD30/31/55, and ILQ30/31/55 are optically coupled isolators wih Gallium Arsenide infrared emitters and silicon photo

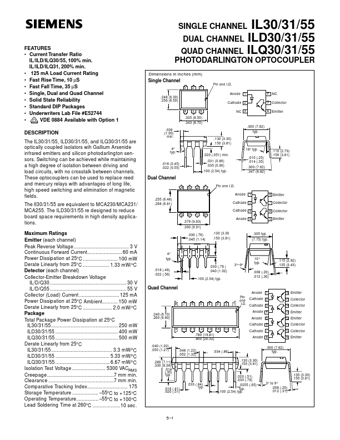

Datasheet Preview: IL31 📥 Download PDF (63.85kb)
Page 2 of IL31 Page 3 of IL31

IL31 Application

  • Applications Maximum Ratings Emitter (each channel) Peak Reverse Voltage 3 V Continuous Forward Current 60 mA Power Dissipation at 25°C 100 mW Der
