IL4118

ZERO VOLTAGE CROSSING TRIAC DRIVER OPTOCOUPLER

IL4118 Features

* High Input Sensltlvity: IFT=1.3 mA, PF=1.0; IFT=3.5 mA, Typlcal PF < 1.0

* Zero Voltage Crosslng

* 600/700/800 V Blocklng Voltage

* 300 mA On-State Current

* High Statlc dv/dt 10,000 V/µsec., typical

* Inverse Parallel SCRs Provide Commutatlng dv/dt

IL4118 General Description

The IL411x consists of an AlGaAs IRLED optically coupled to a photosensitive zero crossing TRIAC network. The TRIAC consists of two inverse parallel connected monolithic SCRs. These three semiconductors are assembled in a six pin 0.3 inch dual inline package, using high insulation double molded, ove.

IL4118 Datasheet (84.51 KB)

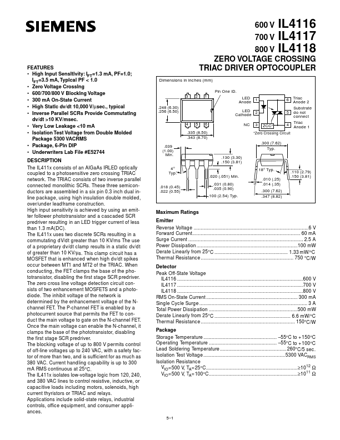

Preview of IL4118 PDF
