KTY19-6Z - Silicon Spreading Resistance Temperature Sensor in Robust Threaded Metal Housing

Datasheet Summary

Features

  • Temperature dependent Resistor with Positive Temperature Coefficient.
  • Selected at 25 ˚C, R25 = 2000 Ω ± 1%.
  • Corrosion resistant stainless steel housing with connector socket.
  • Fast response.
  • High long-term stability.
  • excellent linearity.
  • Robust threaded housing.
  • Mating splash-proof connector set available Test voltage: Isolation voltage: Test duration: Insertion torque: Type KTY 19-6M KTY 19-6Z Marking 1000 V ~ 100 V ~ 1s ma.

📥 Download Datasheet

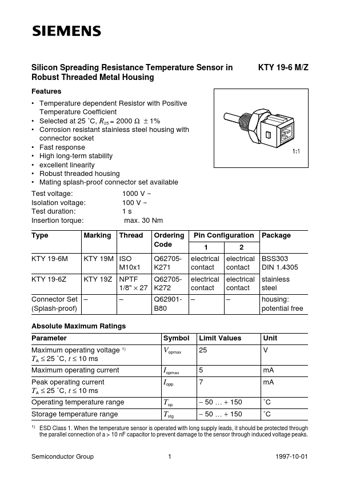

Datasheet preview – KTY19-6Z

Datasheet Details

Part number KTY19-6Z
Manufacturer Siemens Semiconductor Group
File Size 56.90 KB
Description Silicon Spreading Resistance Temperature Sensor in Robust Threaded Metal Housing
Datasheet download datasheet KTY19-6Z Datasheet
Additional preview pages of the KTY19-6Z datasheet.

📁 Similar Datasheet

  • KTY19-6Z - Silicon Temperature Sensors (Infineon Technologies AG)
  • KTY19-6 - Silicon Temperature Sensors (Infineon Technologies AG)
  • KTY19-6M - Silicon Temperature Sensors (Infineon Technologies AG)
  • KTY10-5 - Silicon Temperature Sensors (Infineon Technologies AG)
  • KTY10-6 - Silicon Temperature Sensors (Infineon Technologies AG)
  • KTY10-62 - Silicon Temperature Sensors (Infineon Technologies AG)
  • KTY10-7 - Silicon Temperature Sensors (Infineon Technologies AG)
  • KTY11 - Silicon Spreading Resistance Temperature Sensor (Siemens)
  • KTY11-5 - Silicon Temperature Sensors (Infineon Technologies AG)
  • KTY11-6 - Silicon Temperature Sensors (Infineon Technologies AG)
Other Datasheets by Siemens Semiconductor Group
  • KTY19-6M - Silicon Spreading Resistance Temperature Sensor in Robust Threaded Metal Housing
  • KTY19- - Silicon Spreading Resistance Temperature Sensor in Robust Threaded Metal Housing
  • KTY10 - Silicon Spreading Resistance Temperature Sensor in Leaded Plastic Package
  • KTY10-5 - Silicon Spreading Resistance Temperature Sensor in Leaded Plastic Package
  • KTY10-6 - Silicon Spreading Resistance Temperature Sensor in Leaded Plastic Package
  • KTY10-62 - Silicon Spreading Resistance Temperature Sensor in Leaded Plastic Package
  • KTY10-7 - Silicon Spreading Resistance Temperature Sensor in Leaded Plastic Package
  • KTY11-5 - Silicon Spreading Resistance Temperature Sensor

Full PDF Text Transcription

Click to expand full text
Silicon Spreading Resistance Temperature Sensor in Robust Threaded Metal Housing Features • Temperature dependent Resistor with Positive Temperature Coefficient • Selected at 25 ˚C, R25 = 2000 Ω ± 1% • Corrosion resistant stainless steel housing with connector socket • Fast response • High long-term stability • excellent linearity • Robust threaded housing • Mating splash-proof connector set available Test voltage: Isolation voltage: Test duration: Insertion torque: Type KTY 19-6M KTY 19-6Z Marking 1000 V ~ 100 V ~ 1s max. 30 Nm Thread Ordering Code Q62705K271 Pin Configuration 1 2 KTY 19-6 M/Z Package KTY 19M ISO M10x1 electrical electrical BSS303 contact contact DIN 1.
