Q-62702-G66 - GaAs MMIC (Variable gain amplifier MMIC-Amplifier for mobile communication Typical Gain Control range over 50dB)

📥 Download Datasheet

Datasheet preview – Q-62702-G66

Datasheet Details

Part number Q-62702-G66
Manufacturer Siemens Semiconductor Group
File Size 94.06 KB
Description GaAs MMIC (Variable gain amplifier MMIC-Amplifier for mobile communication Typical Gain Control range over 50dB)
Datasheet download datasheet Q-62702-G66 Datasheet
Additional preview pages of the Q-62702-G66 datasheet.

📁 Similar Datasheet

Other Datasheets by Siemens Semiconductor Group
  • Q-67106-H6514 - PLL-Frequency Synthesizer PMB2306R/PMB2306T Version 2.2

Full PDF Text Transcription

Click to expand full text

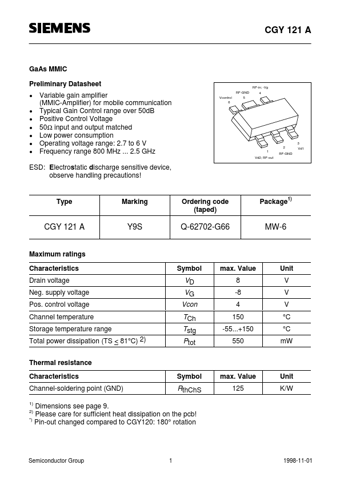

CGY 121 A GaAs MMIC Preliminary Datasheet l l l l l l l RF-in; -Vg Vcontrol 6 RF-GND 5 4 Variable gain amplifier (MMIC-Amplifier) for mobile communication Typical Gain Control range over 50dB Positive Control Voltage 50Ω input and output matched Low power consumption Operating voltage range: 2.7 to 6 V Frequency range 800 MHz ... 2.5 GHz 3 2 1 Vd2; RF-out RF-GND Vd1 ESD: Electrostatic discharge sensitive device, observe handling precautions! Type Marking Ordering code (taped) Package 1) CGY 121 A Y9S Q-62702-G66 MW-6 Maximum ratings Characteristics Drain voltage Neg. supply voltage Pos. control voltage Channel temperature Storage temperature range Total power dissipation (TS < 81°C) 2) Thermal resistance Characteristics Channel-soldering point (GND) 1) 2) Symbol max.
