SFH2030F Datasheet - Siemens Semiconductor Group

SFH2030F - PIN PHOTODIODE

Betriebs- und Lagertemperatur Operating and storage temperature range Löttemperatur (Lötstelle 2 mm vom Gehäuse entfernt bei Lötzeit t ≤ 3 s) Soldering temperature in 2 mm distance from case bottom (t ≤ 3 s) Sperrspannung Reverse voltage Verlustleistung Total power dissipation Symbol Symbol Wert Val.

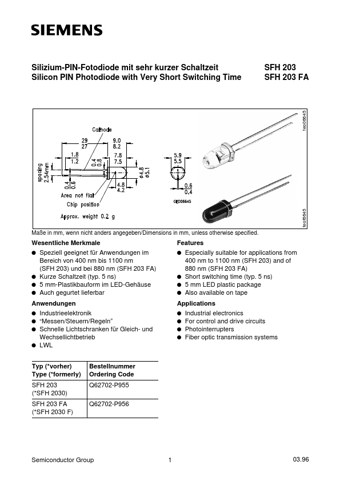

SFH 203 SFH 203 FA Silizium-PIN-Fotodiode mit sehr kurzer Schaltzeit Silicon PIN Photodiode with Very Short Switching Time SFH 203 SFH 203 FA Maße in mm, wenn nicht anders angegeben/Dimensions in mm, unless otherwise specified. Wesentliche Merkmale q Speziell geeignet für Anwendungen im Bereich von 400 nm bis 1100 nm (SFH 203) und bei 880 nm (SFH 203 FA) q Kurze Schaltzeit (typ. 5 ns) q 5 mm-Plastikbauform im LED-Gehäuse q Auch gegurtet lieferbar Anwendungen q Industrieelektronik q “Messen/S.

SFH2030F Features

* q Especially suitable for applications from 400 nm to 1100 nm (SFH 203) and of 880 nm (SFH 203 FA) q Short switching time (typ. 5 ns) q 5 mm LED plastic package q Also available on tape Applications q Industrial electronics q For control and drive circuits q Photointerrupters q Fiber optic transmis

SFH2030F_SiemensSemiconductorGroup.pdf

Preview of SFH2030F PDF
SFH2030F Datasheet Preview Page 2 SFH2030F Datasheet Preview Page 3

Datasheet Details

Part number:

SFH2030F

Manufacturer:

Siemens Semiconductor Group

File Size:

225.23 KB

Description:

Pin photodiode.
