SFH4592 Datasheet - Siemens Semiconductor Group

SFH4592 Schnelle GaAlAs-IR-Lumineszenzdiode High-Speed GaAlAs Infrared Emitter

Betriebs- und Lagertemperatur Operating and storage temperature range Sperrspannung Reverse voltage Durchlaβstrom Forward current Stoβstrom, tp = 10 µs, D = 0 Surge current Verlustleistung Power dissipation Wärmewiderstand Sperrschicht - Umgebung, freie Beinchenlänge max. 10 mm Thermal resistance ju.

Schnelle GaAlAs-IR-Lumineszenzdiode High-Speed GaAlAs Infrared Emitter SFH 4591 SFH 4592 Area not flat 0.6 0.4 9.0 8.2 7.8 7.5 2.54 mm spacing 0.8 0.4 5.9 5.5 ø5.1 ø4.8 Anode 1.8 1.2 29.5 27.5 Chip position GEX06626 SFH 4591 Area not flat 0.6 0.4 9.0 8.2 7.8 7.5 2.54 mm spacing 0.8 0.4 5.9 5.5 Anode SFH 4592 Approx. weight 0.2 g GEX06984 Maße in mm, wenn nicht anders angegeben/Dimensions in mm, unless otherwise specified. Wesentliche Merkmale q Hohe Pulsleistung sowie hoher Ges.

SFH4592 Features

* q High pulse power and high radiant flux Φe q Very short switching times (10 ns) q Low forward voltage and power dissipation q Very high long-time stability q Available on tape and reel Applications q High data transmission rate up to 100 Mbaud (IR keyboard, Joystick, Multimedia) q Analog and digit

SFH4592 Datasheet (50.95 KB)

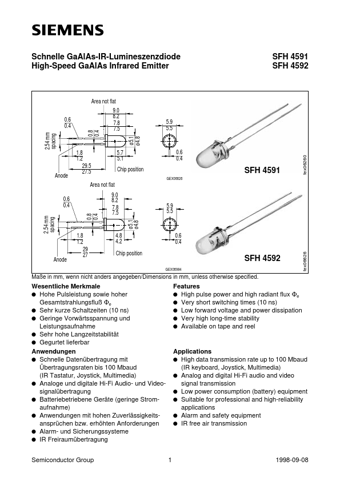

SFH4592 Datasheet Preview — Preview of SFH4592 PDF

Datasheet Details

Part number:

SFH4592

Manufacturer:

Siemens Semiconductor Group

File Size:

50.95 KB

Description:

Schnelle gaalas-ir-lumineszenzdiode high-speed gaalas infrared emitter.
