Q62705-K111 - Silicon Spreading Resistance Temperature Sensor

Product Overview

Siemens Semiconductor

Part number	Q62705-K111
Manufacturer	Siemens Semiconductor
File Size	61.89 KB
Description	Silicon Spreading Resistance Temperature Sensor
Datasheet	Q62705-K111 Datasheet
Note	This datasheet PDF includes multiple part numbers: Q62705-K111, Q62705-K110. Please refer to the document for exact specifications by model.

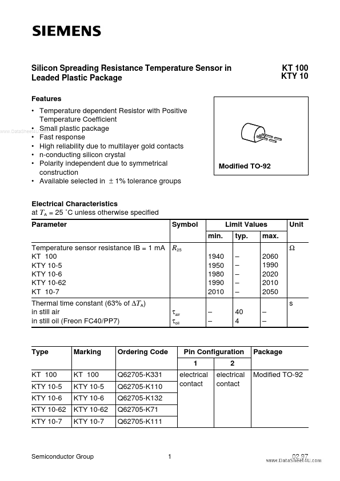

Additional preview pages of the Q62705-K111 datasheet.

Temperature dependent Resistor with Positive Temperature Coefficient.
Small plastic package www. DataSheet4U. com.
Fast response.
High reliability due to multilayer gold contacts.
n-conducting silicon crystal.
Polarity independent due to symmetrical construction.
Available selected in ± 1% tolerance groups Electrical Characteristics at TA = 25 ˚C unless otherwise specified Parameter Symbol min. Temperature sensor resistance IB = 1 mA.
