Q627002G0078 Datasheet - Siemens Semiconductor Group

Q627002G0078 GaAs MMIC (Tri mode power amplifier for AMPS/ CDMA /TDMA portable cellular phones)

3.9pF 0402 100pF 0402 1uF 1206 5.6pF 0603 HQ 10pF 0603 HQ 10 nF 0402 1 nF 0402 4 4 680R R2 Manufacturer Siemens Siemens Siemens AVX AVX Siemens Siemens 10p HQ 16 15 14 13 12 11 10 9 L2 100p 1u0 1u0 1u0 1u0 C3 C5 C4 C6 C7 C10 RFout C8 C9 100p Part Number 06035J5R6GBT 06035J100GBT .

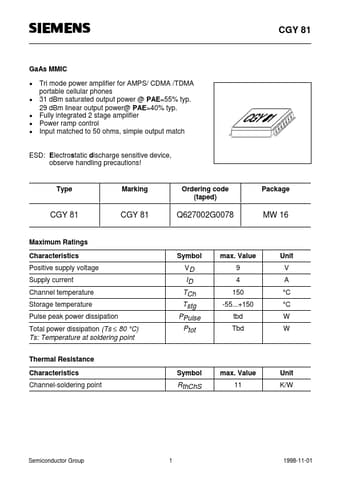

CGY 81 GaAs MMIC l l l l l Tri mode power amplifier for AMPS/ CDMA /TDMA portable cellular phones 31 dBm saturated output power @ PAE=55% typ. 29 dBm linear output power@ PAE=40% typ. Fully integrated 2 stage amplifier Power ramp control Input matched to 50 ohms, simple output match ESD: Electrostatic discharge sensitive device, observe handling precautions! Type Marking Ordering code (taped) Package CGY 81 CGY 81 Q627002G0078 MW 16 Maximum Ratings Characteristics Positive supply vol.

Q627002G0078 Datasheet (247.98 KB)

Q627002G0078 Datasheet Preview — Preview of Q627002G0078 PDF

Datasheet Details

Part number:

Q627002G0078

Manufacturer:

Siemens Semiconductor Group

File Size:

247.98 KB

Description:

Gaas mmic (tri mode power amplifier for amps/ cdma /tdma portable cellular phones).
