4274GV50 Datasheet - Siemens

TLE4274GV50

4274GV50 Features

* Output voltage tolerance ≤ ± 4 % Low-drop voltage Very low current consumption Short-circuit proof Reverse polarity proof Suitable for use in automotive electronics P-TO220-3-1 Type TLE 4274 V10 TLE 4274 V85 TLE 4274 V50 TLE 4274 D V50 Orde

4274GV50 General Description

The TLE 4274 is a low-drop voltage regulator in a TO220 package. The IC regulates an input voltage up to 40 V to VQrated = 5.0 V (V50), 8.5 V (V85) and 10 V (V10). The maximum output current is 400 mA. The IC is short-circuit proof and incorporates temperature protection that disables the IC at over.

4274GV50 Datasheet (149.25 KB)

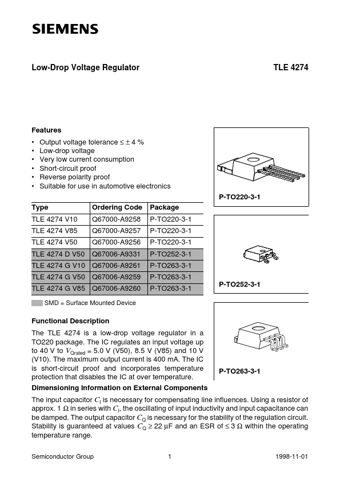

4274GV50 Datasheet Preview — Preview of 4274GV50 PDF

Datasheet Details

Part number:

4274GV50

Manufacturer:

Siemens

File Size:

149.25 KB

Description:

Tle4274gv50.
