4276GV Datasheet - Siemens

TLE4276GV10

4276GV Features

* Output voltage tolerance ≤ ± 4% Low-drop voltage Inhibit input Very low current consumption Short-circuit-proof Reverse polarity proof Suitable for use in automotive electronics Ordering Code Package Q67000-A9262 P-TO220-5-3 Q6700

4276GV General Description

The TLE 4276 is a low-drop voltage regulator in a TO220 package. The IC regulates an input voltage up to 40 V to VQrated = 5.0 V (V50), 8.5 V (V85), 10 V (V10) and adjustable voltage (V). The maximum output current is 400 mA. The IC can be switched off via the inhibit input, which causes the current.

4276GV Datasheet (184.00 KB)

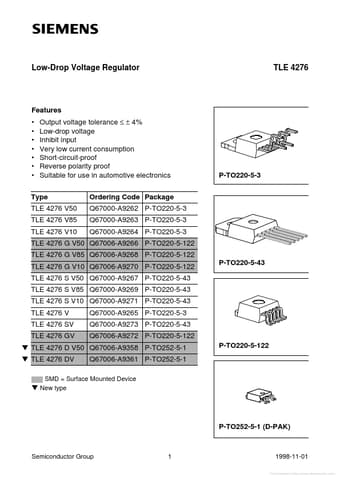

4276GV Datasheet Preview — Preview of 4276GV PDF

Datasheet Details

Part number:

4276GV

Manufacturer:

Siemens

File Size:

184.00 KB

Description:

Tle4276gv10.
