HYM321005GS-50 1M x 32-Bit Dynamic RAM Module

EDO - DRAM module (access time50 ns) EDO - DRAM module (access time 60 ns) EDO - DRAM module (access time 50 ns) EDO - DRAM module (access time 60 ns) Semiconductor Group 2 HYM 321005S/GS-50/-60 1M × 32-Bit EDO-Module Pin Names VSS DQ16 DQ17 DQ18 DQ19 N.C. A1 A3 A5 N.C. DQ20 DQ21 DQ22 DQ23 N.C..

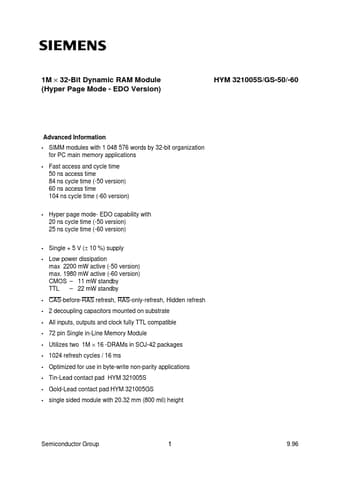

1M × 32-Bit Dynamic RAM Module (Hyper Page Mode - EDO Version) HYM 321005S/GS-50/-60 Advanced Information SIMM modules with 1 048 576 words by 32-bit organization for PC main memory applications Fast access and cycle time 50 ns access time 84 ns cycle time (-50 version) 60 ns access time 104 ns cycle time (-60 version) Hyper page mode- EDO capability with 20 ns cycle time (-50 version) 25 ns cycle time (-60 version) Single + 5 V (± 10 %) supply Low power dissipation max 2200 mW acti.

HYM321005GS-50 Features

* input signals. Transition times are also measured between VIH a
